TASCAM U9 PDI1394P23B FIREWIRE CHIP

Updated 25 November 2024

I have a good supply of the U9 firewire chip; PDI1394P23BD.
(Probably a "lifetime" supply, if I run out I will update this page accordingly)

These are NOS Phillips chips, the same exact chip that is on the board.

Click here to Shop via my Square Store site
all major credit cards accepted

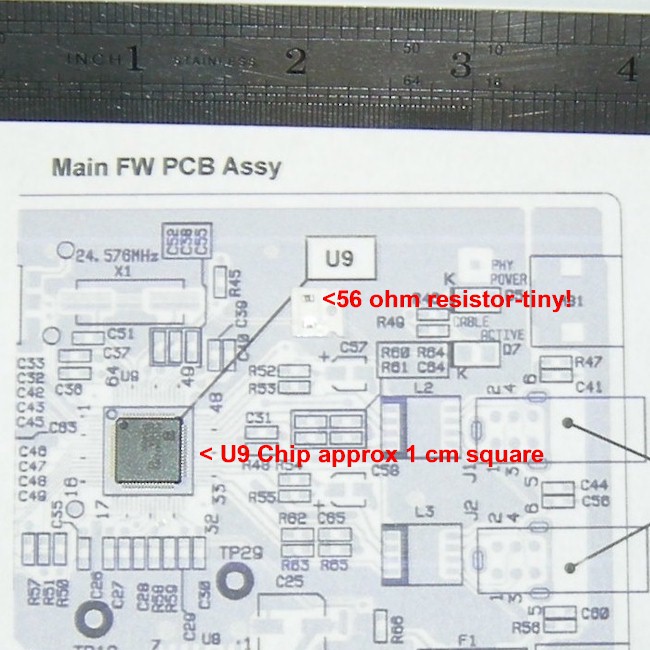

Below is Service Bulletin #0340, that is the chip in the photo; they are quite small.

It has been reported on the forum, that R52, 55, 60 & 63 also fail when the firewire cable is inserted upside down.
There are 2 of the 56 ohm resistors right below the lettering, U9, on the bulletin; they are very small.

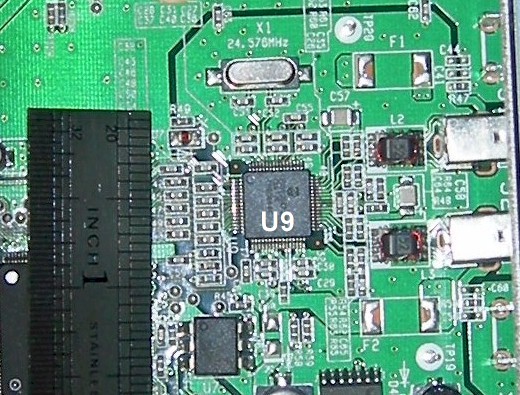

Below is a photo of the U9 section on my FE-8. Its very similar to the 1884.

PRICING:
U9 chip and 6 (you'll need 4) 56 ohm resistors is $20.00
Your order will ship via US Postal Priority Mail.
Postage rates:
USA       $ 10.40 + sales tax rate in your state
Canada  $ 32.50
Other     $ 50.00

Click here to Shop via my Square Store site
all major credit cards accepted

I have plenty of U9 chips in stock as of: 25 November 2024

DISCLAIMER!

I have not yet done this repair myself, both my 1884's are in fine working order.
I can NOT confirm that R52, 55, 60 & 63 are the resistors that will need replacing.
You'll have to check when doing the repair.

I CAN confirm that this is not a repair for the faint of heart!
It requires advanced soldering skills!

Let me know if you need any further information.
